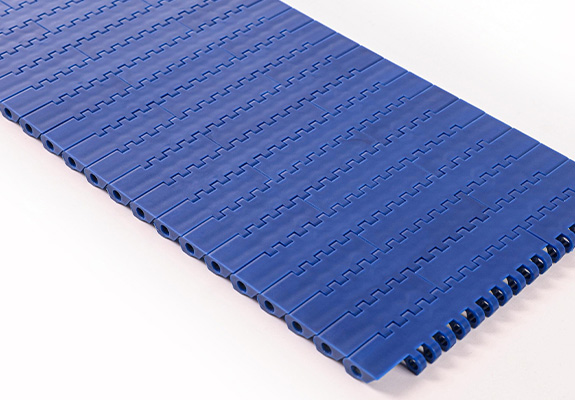

HC152

The HC152 modular plastic belt from Modutech offers a drop-in interchangeable solution for Series 1100 belts. Engineered for reliability and value, it provides an alternative that doesn’t compromise.

With multiple surface styles, materials and colors, HC152 provides the flexibility to meet a wide range of conveying needs in food processing, packaging and light industrial applications.

‍

Key Advantages

• Drop-In Interchangeability: Designed for Series 1100 belt applications and existing 0.6” (15.2 mm) pitch modular systems; no sprocket or setup changes required.
• Tight-Transfer Capability: Supports tight transfers with a 0.875” (22.2 mm) diameter nosebar.‍
• Surface Variety: Flat Top, Flush Grid and Flush Grid Grip Top configurations.
• ‍Material Flexibility: Multiple material options.

Available Configurations

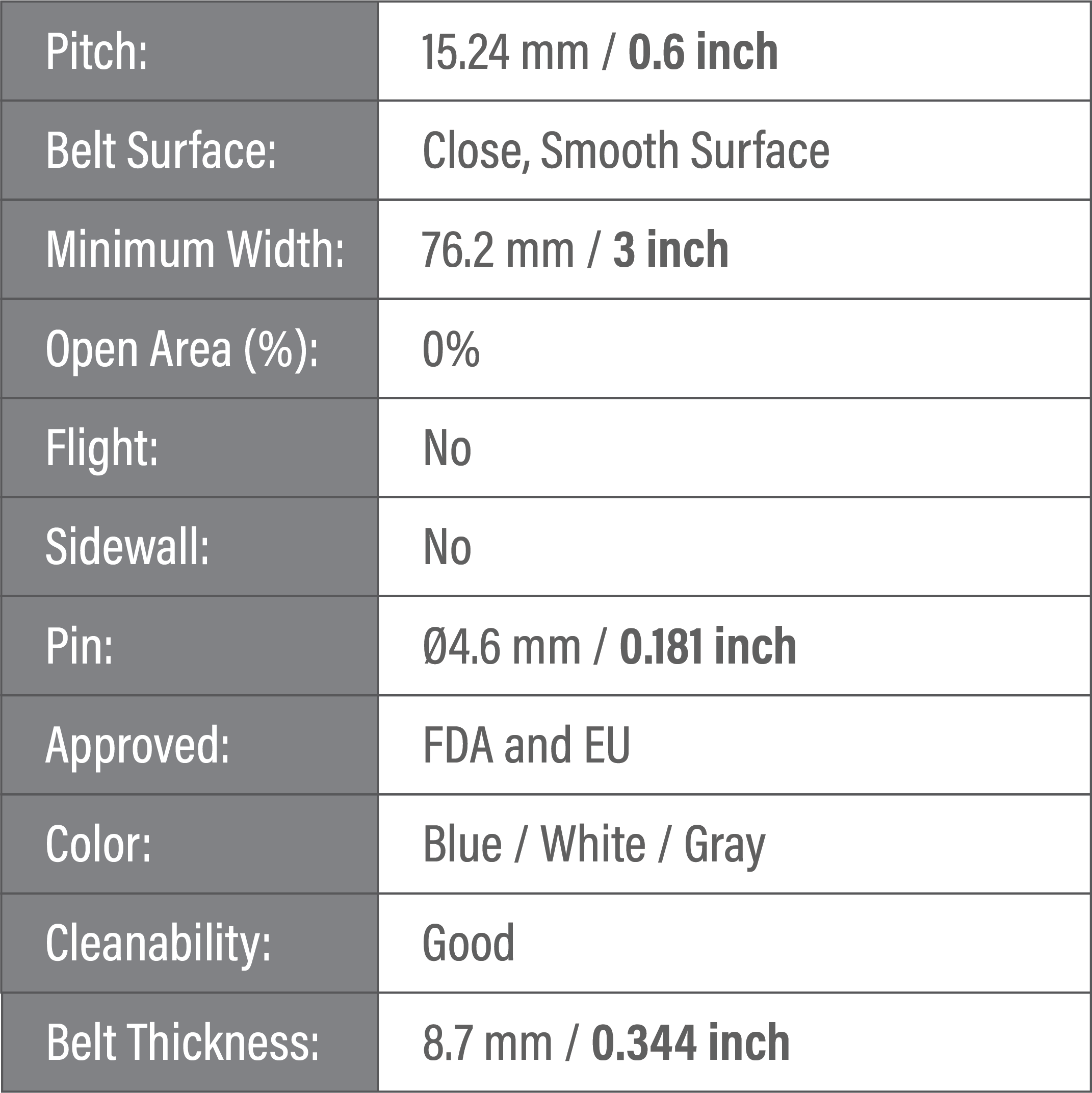

HC152 C – Flat Top

Smooth, solid surface for general conveying applications.

Materials/Colors: White Polypropylene, Blue Acetal

‍

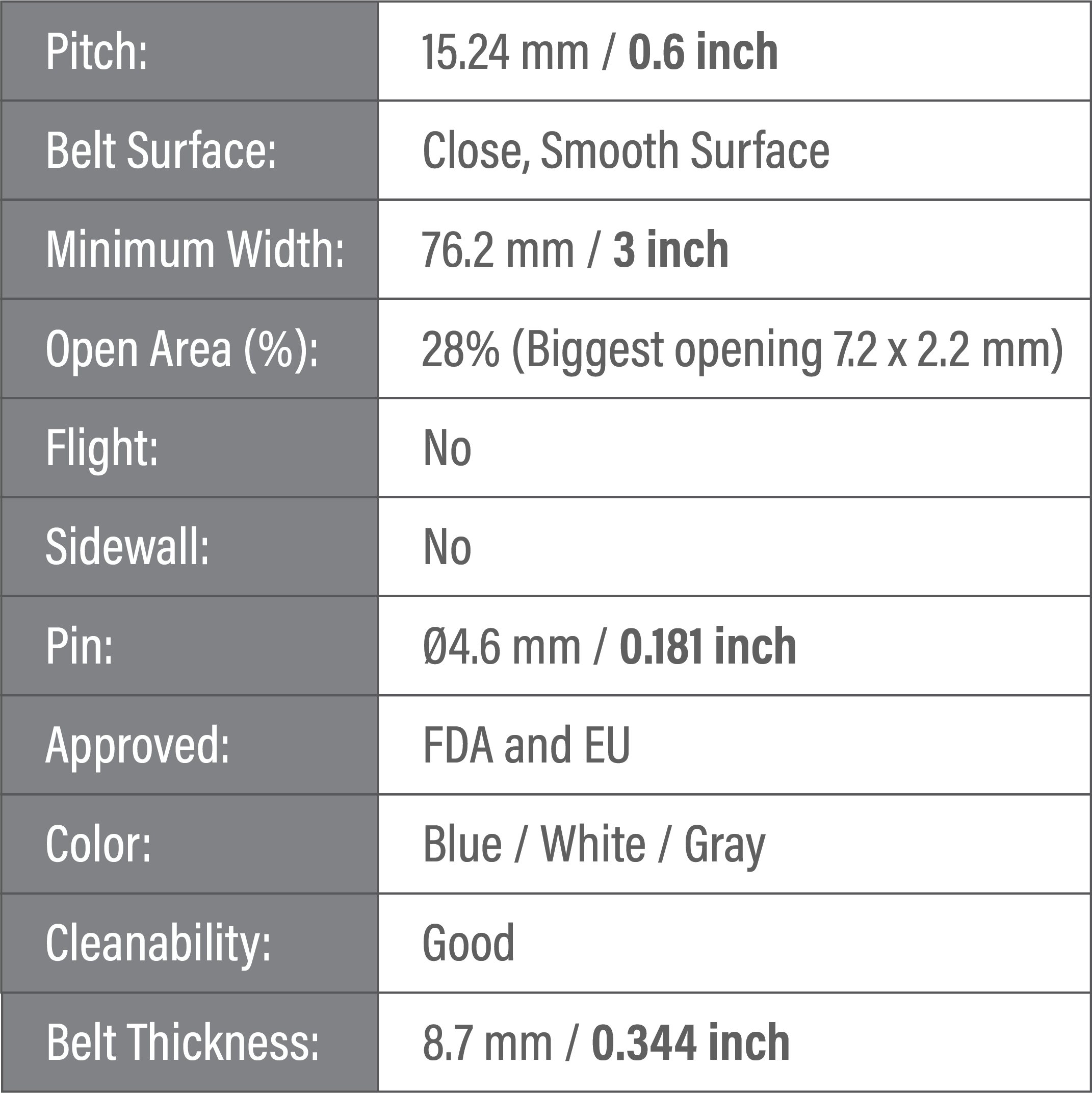

HC152 FG – Flush Grid

28% open-area design promotes drainage and airflow.

Materials/Colors: White Polypropylene, Grey Polypropylene, Blue Acetal

‍

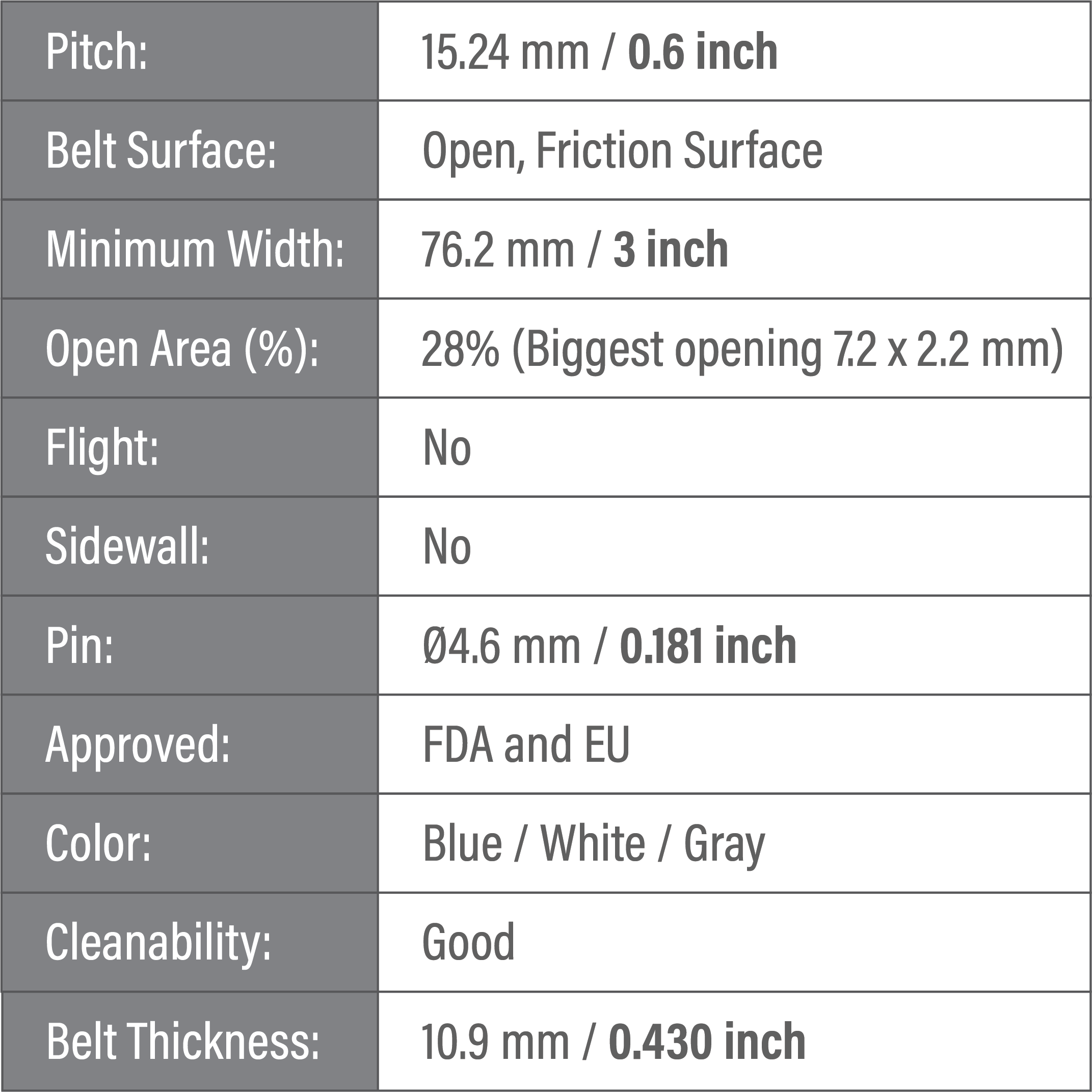

HC152 FG-GT – Flush Grid Grip Top

Grip-top surface with 28% open area for incline conveying or product stabilization.

Materials/Colors: White Polypropylene/White Grip, Grey Polypropylene/Black Grip

‍

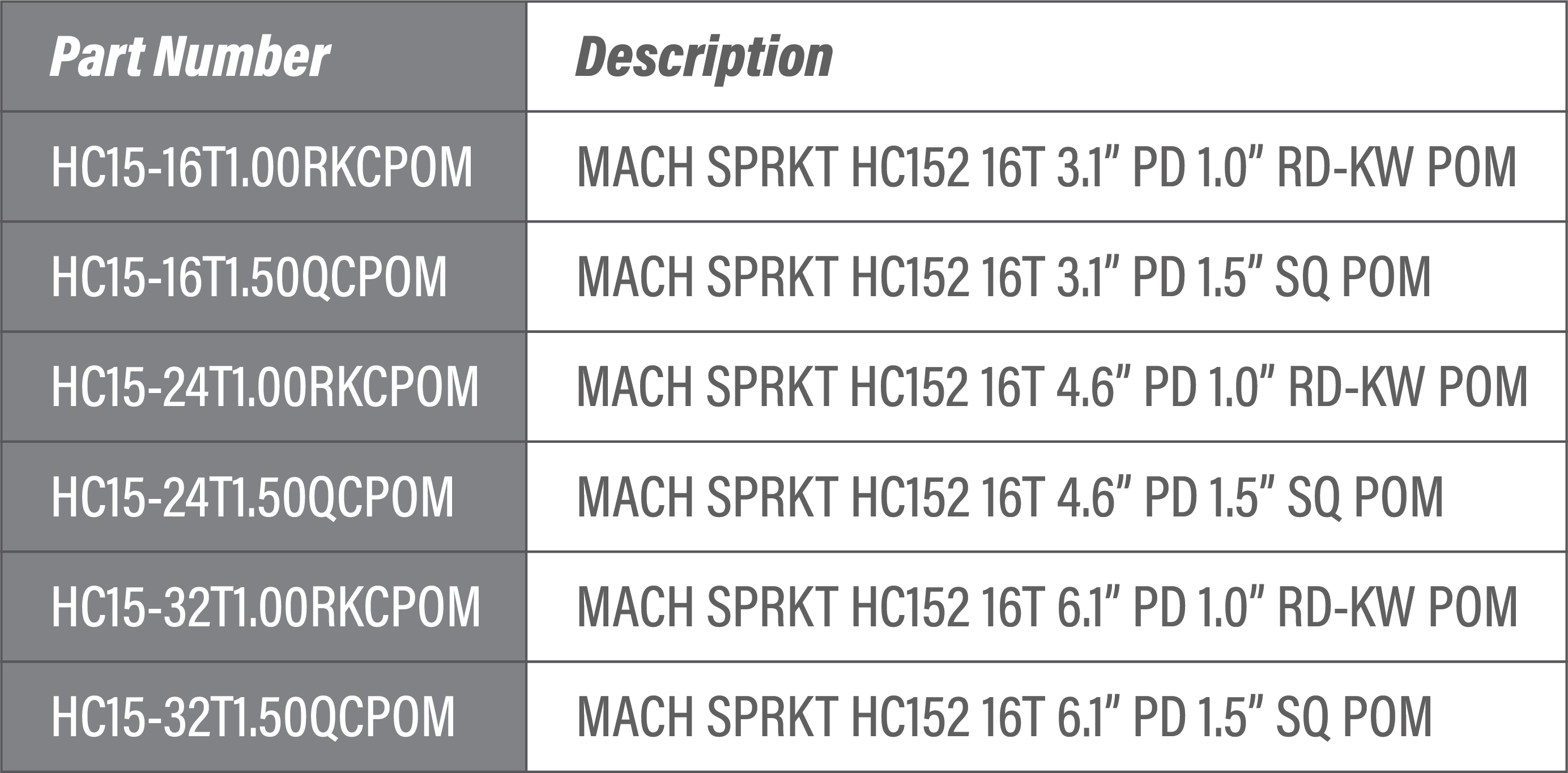

Sprocket Compatibility

*Alternative sprockets available by special order.
