Tough applications demand tough components. Our full line of wear parts helps your belts handle impact, abrasion and heavy-duty operation to reduce system wear, minimize downtime and extend belt life.
From rubber and lining to fast, easy repairs, our wear parts are designed to perform in the harshest conditions. Whether you’re installing a new system or maintaining an existing one, you’ll find the right parts here to keep your conveyors running smoothly.
Key Advantages
• Minimizes stress on equipment
• High abrasion and impact resistance
• Extends equipment lifespan
• Easy installation and maintenance

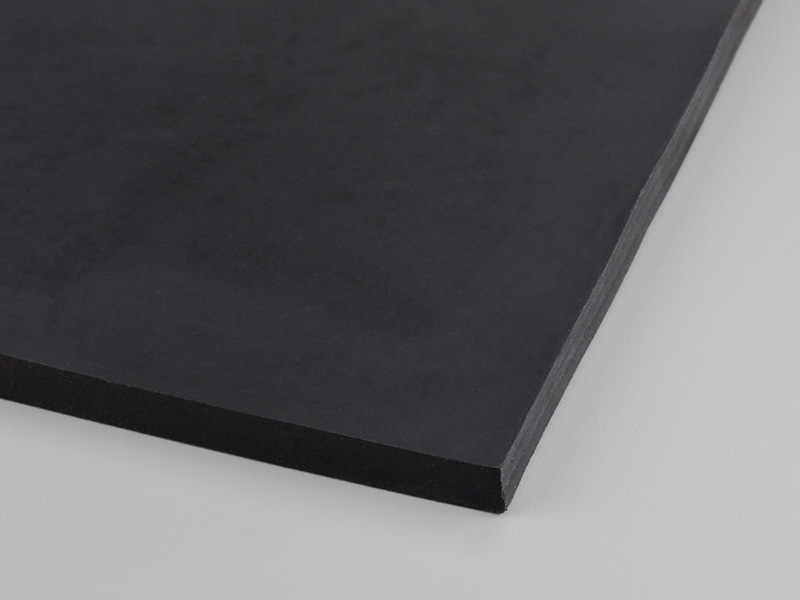

Skirtboard Rubber / Chute Lining
Guides material flow and protects equipment at loading points. Also ideal for lining metal or wood chutes, hoppers and troughs. Commonly used in construction, aggregate, mining and grain applications.
Sizes: 100’ & 50’ lengths × 48” wide (custom widths and lengths available)
Thicknesses: 1/8”, 1/4”, 3/8”, 1/2”, 1”
Orange Rubber
A 45-durometer natural rubber with superior cut, tear and abrasion resistance. Outlasts comparable materials and provides a softer, more effective seal for dust and product containment.
Sizes: 4 – 60” widths | 50’ roll length
Thicknesses: 1/4”–1”

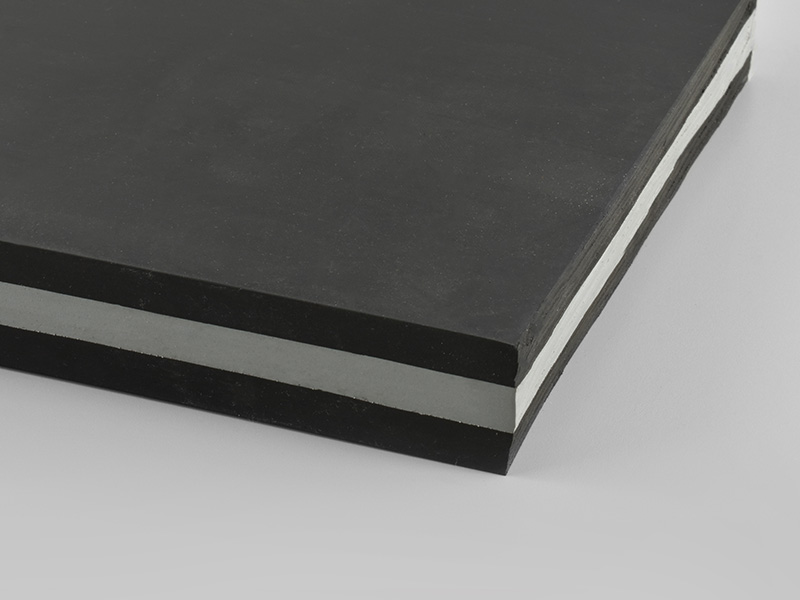

Combi Rubber
Dual-durometer rubber built for belt scrapers and wet, sticky applications. Tough outer layers scrape; softer inner layers wipe clean for longer wear life than commercial SBR.
Durometer: 80/50/80
Sizes: 4 – 60” widths | 50’ roll length
Thickness: 1”

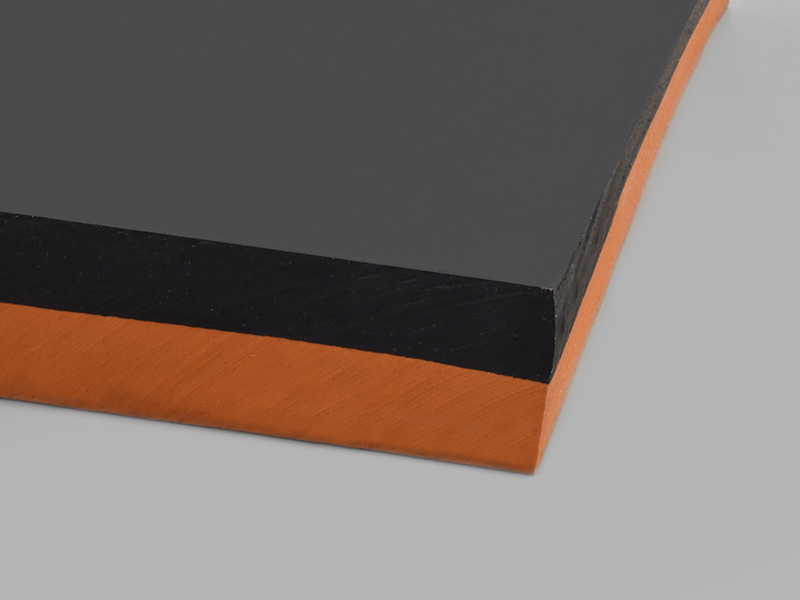

Dual Durometer Rubber
Combines 45 Duro orange and 60 Duro black layers for cleaning power and abrasion resistance. The rigid side scrapes while the softer side wipes clean, perfect for impact zones and scrapers.
Sizes: 4 – 60” widths | 50’ roll length
Thickness: 1/2”

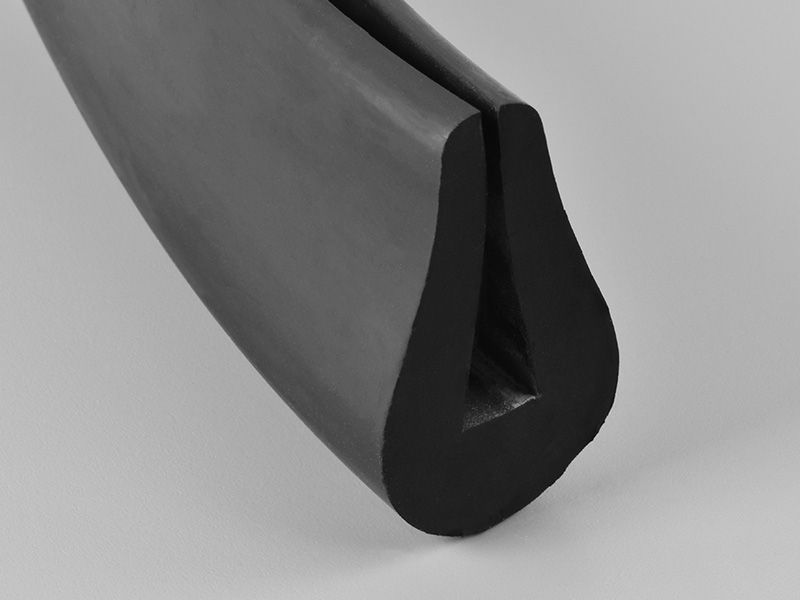

Crown Bar Rubber
Reduces shock and vibration on shaker screens, extending equipment life and minimizing stress on frames.
Available types:
• Round Top – 3/8” long leg
• Hex Top – 1/4”, 3/8”, 1/2” or 3/4”
Packaged in: 50’ increments

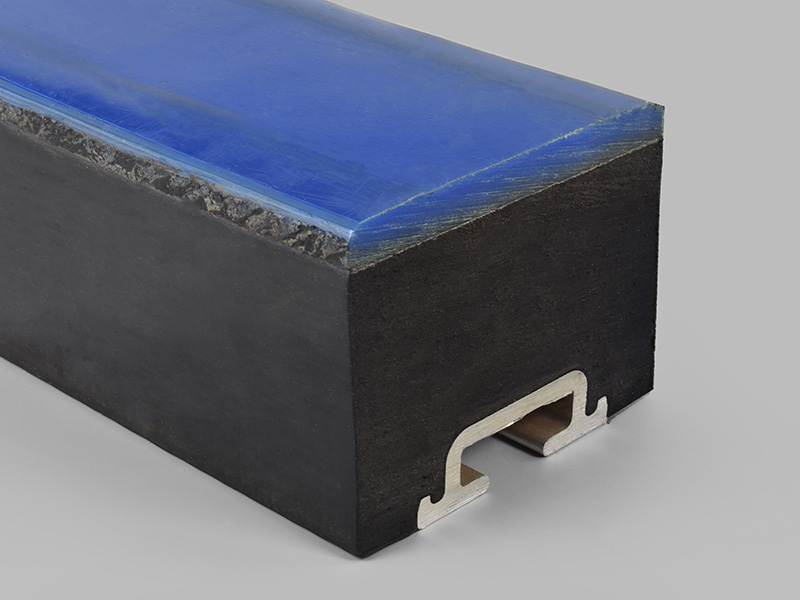

Impact Bars
Heavy-duty impact bars deliver structured belt support with top-grade materials for outstanding impact and wear resistance. Extend belt service life and reduce bed maintenance.
Dimensions: 3” H × 4” W with 3/8” blue UHMW top
Lengths: 48” (4 bolts) or 60” (6 bolts)
Diamond Lagging
Diamond-textured rubber maintains strong belt contact while letting fines and moisture escape. Perfect for lightweight and small-diameter pulleys or reversing drive pulleys.
Stocked sizes: 50’ × 60” (custom cuts available)

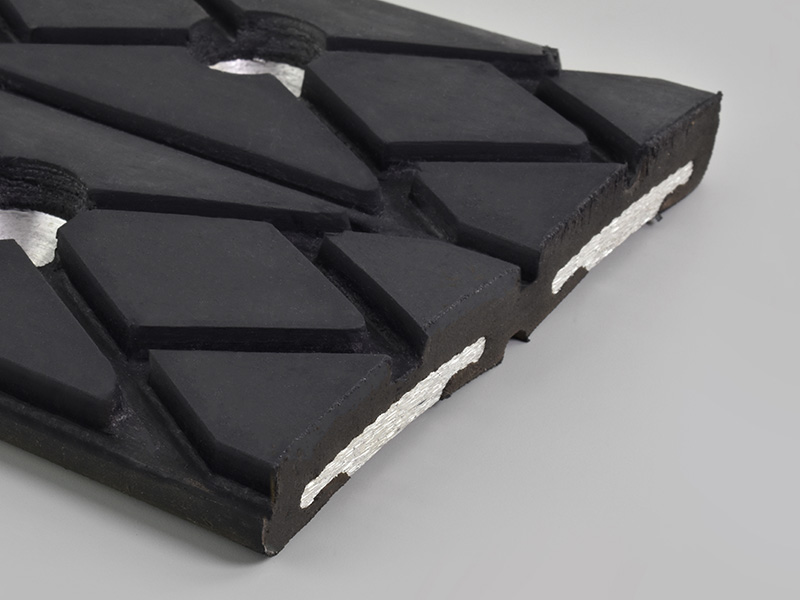

Prime Drive Lagging
Bolt-on diamond lagging that installs quickly without adhesives or curing time. The winged design and pre-drilled holes make it an easy replacement for welded lagging.
Sizes: 5 ½” × 72” flexible strips
Supports pulleys: 10 – 72” diameter

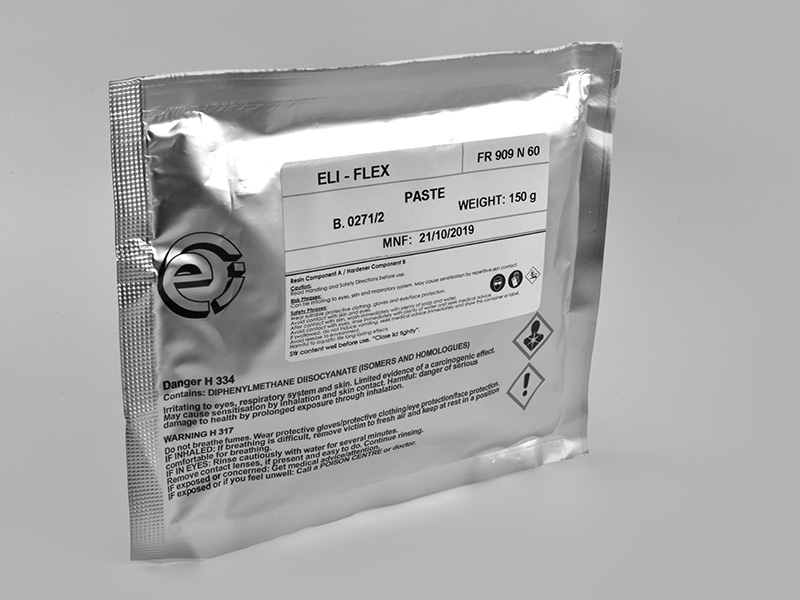

Eli-Flex
A quick-setting, flexible polyurethane resin for easy belt repairs. No special tools required. Simply mix and apply to fix holes, tears, gouges, worn patches or frayed edges.
• High impact and abrasion resistance
• Flame retardant
• Chemically resistant
Belt Scrapers
Urethane scrapers outperform traditional rubber designs and can be customized by gauge, width, height and edge style (square or beveled).
Cleat Blades
Available in “S” and “I” profiles with heights from 5½” to 15¼”. Blades up to 11” tall are ¾” thick; taller blades are 1¼” thick.
Segmented V-Guides
Abrasion-resistant and flexible for smaller pulleys.
• A Section: ½” W × 5/16” H
• B Section: ⅝” W × ½” H
• C Section: ⅞” W × ⅝” H
