108MTAS
100230
U92/2E-AS M White
international designation:

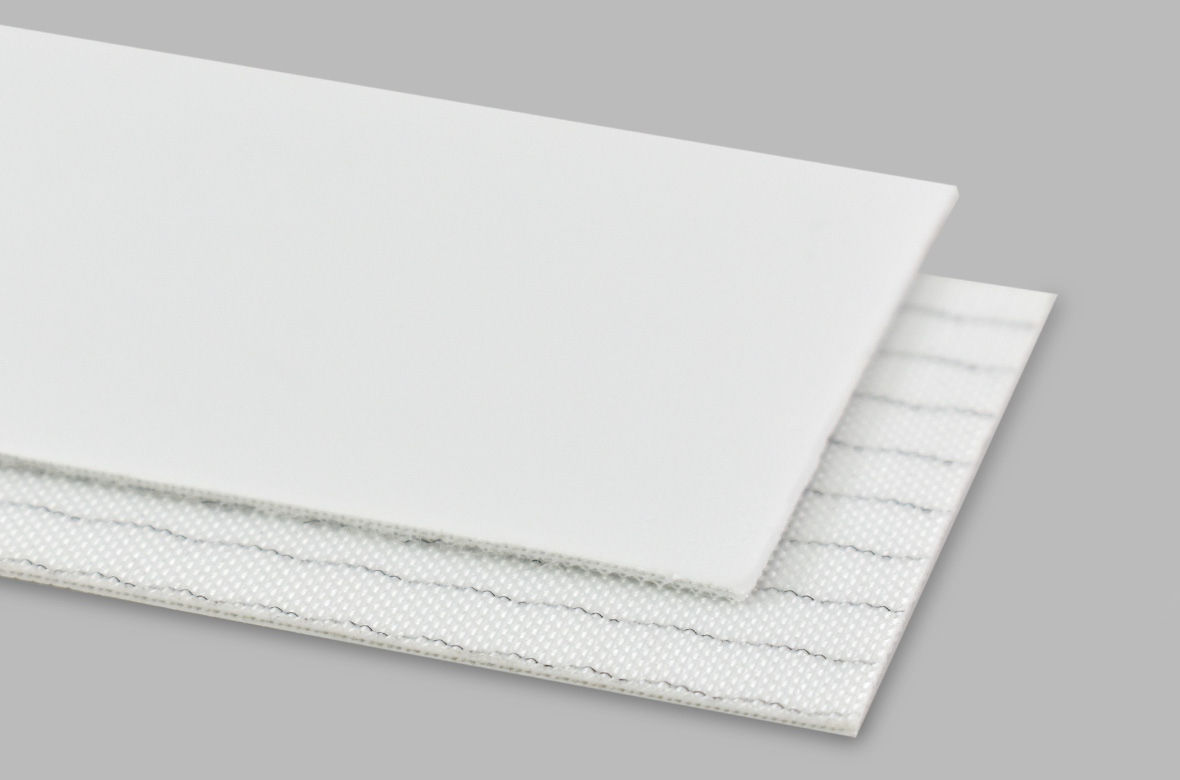

2 Ply Monofilament - Cover One Side
General Conveying and Bakery Belt
Similar products that may interest you:
Construction:

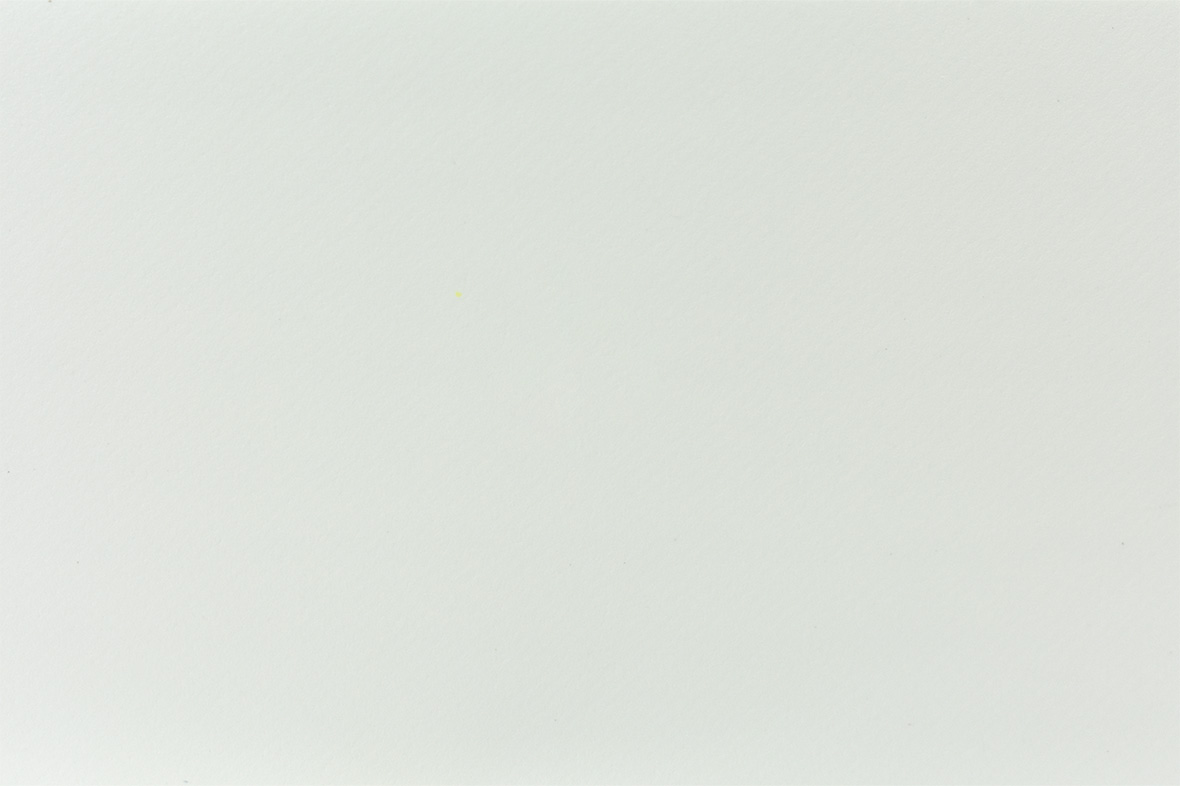

Conveying Surface Material
Conveying Surface Profile
Conveying Surface Color
Conveying Surface Coefficient of Friction
Tension Member Material

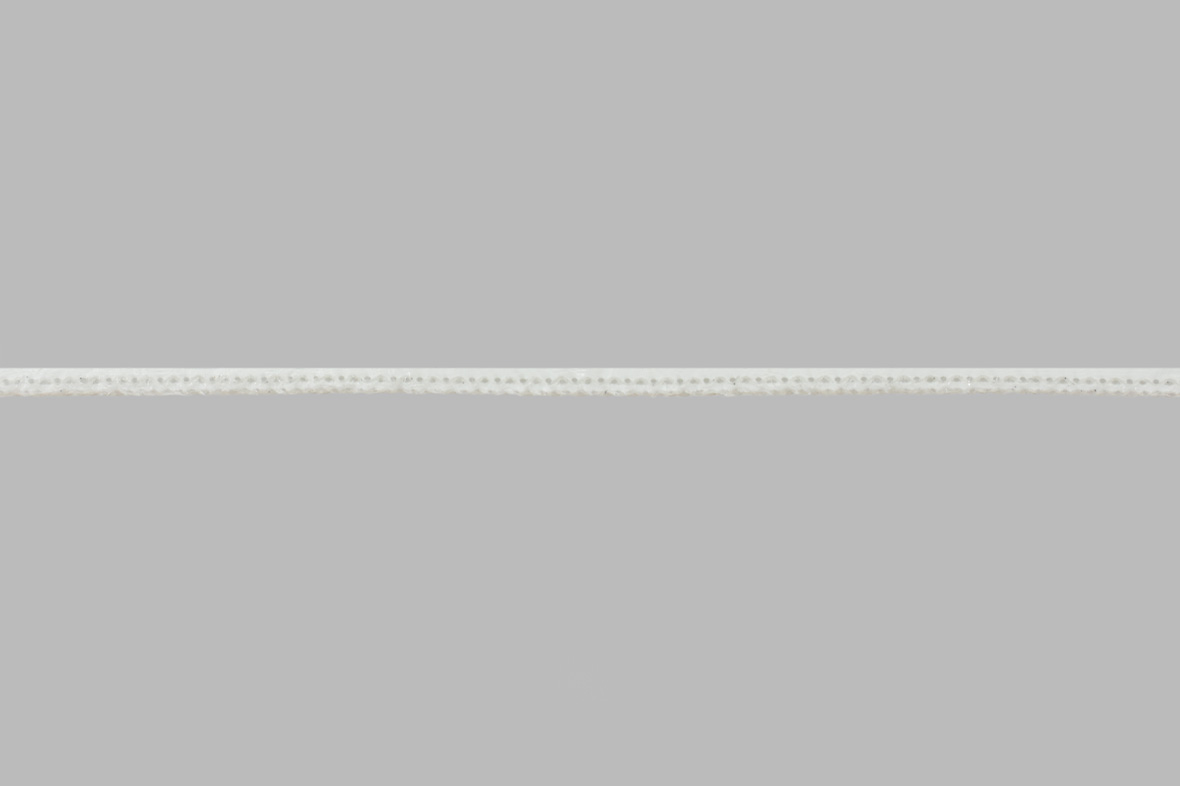

Tension Member Plies

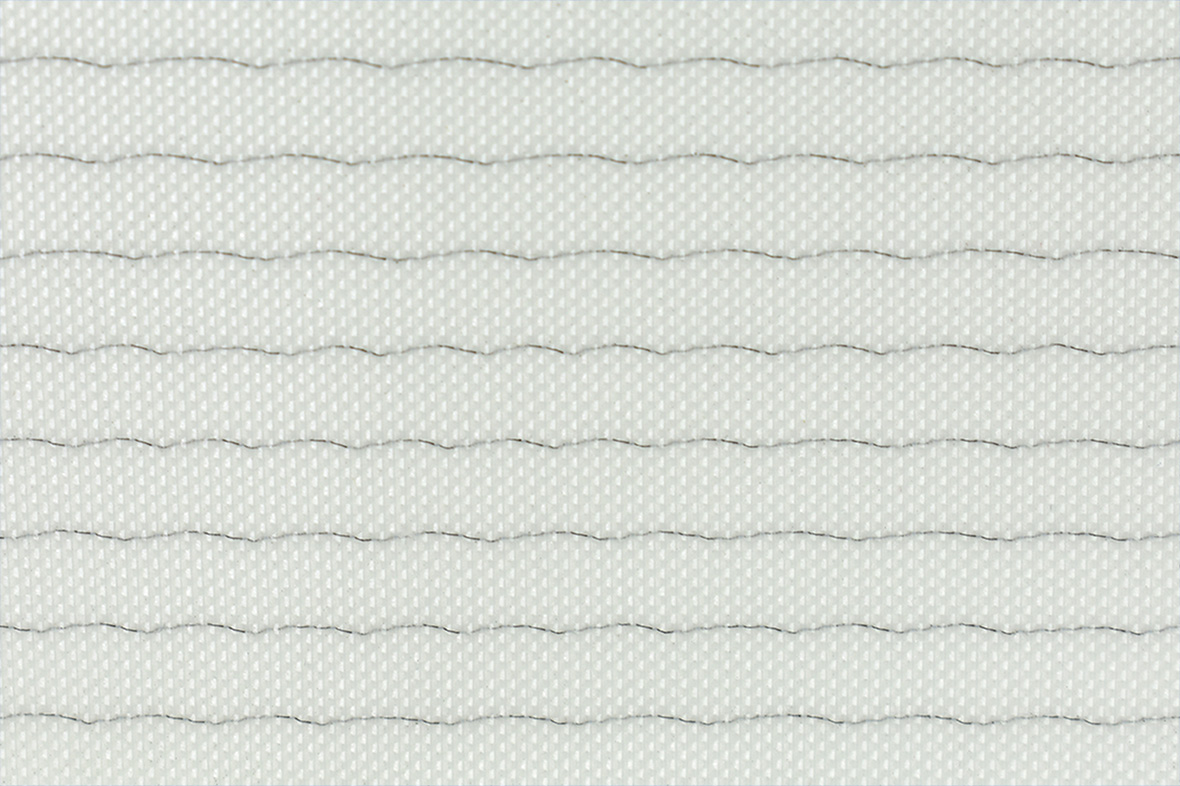

Underside Material
Underside Profile
Underside Color
Underside Coefficient of Friction
Overall Thickness
Weight
Maximum Width
Standard Tension
Product Operational Temperature Range
Cover Durometer
PU
Matt
White
N/A
Polyester Fabric
2
Polyester Fabric
PU Impregnated
White
0.25
1.40 mm (0.055 in.)
1.50 kg/m² (0.31 lbs./ft²)
3,200 mm (126.00 in.)
0.5%
-20/100 °C (-4/212 °F)
92 Shore A
Misc:
Longitudinal Splice: No
Guide Applied to Cover: Yes
Footed Sidewall: Yes
Edge Capped: Yes
Cleats: Yes
Guide Applied to Bottom: Yes
Footless Sidewall: No
Plastic Spiral Lace: Yes
Pulley Diameter, Minimum
Diameter for Recommended Endless Splice
8.00 mm (0.315 in.)
*Minimum pulley diameters can vary when mechanical lace is installed. Contact our technical team for any fabrication or application questions.
Bucket Projection, Maximum
Belt Strength:
Minimum Back Flex
Load for 1% Extension (Dynamic)
37.50 mm (1.476 in.)
6 N/mm (34.26 lbs./in.)
Splice Instructions:
High Speed Press Pressure (psi)
High Speed Press Temperature (top)
High Speed Press Temperature (bottom)
High Speed Press Time
High Speed Press Foil Position
High Speed Press Foil
High Speed Release Top/Bottom
Water Cooled Press Pressure (psi)
Water Cooled Press Temperature (top)
Water Cooled Press Temperature (bottom)
Water Cooled Press Time
Water Cooled Press Foil Position
Water Cooled Press Foil
Water Cooled Release Top/Bottom
25
165 °C (329 °F)
165 °C (329 °F)
90 s
Top
White PU
Matte/Rough Teflon
25
165 °C (329 °F)
165 °C (329 °F)
45 s
Top
White PU
Matte/Rough Teflon
Note: Listed above is a guideline only. Every vulcanizer is different and will show different results. We recommend that you do a test splice with your press before attempting the actual belt splice.
Other:
FDA
USDA Meat and Poultry
USDA Dairy
Anti-Microbial
Anti-Static
Flame Retardant
Cross Rigid
Yes
No
No
No
Yes
No
Yes
Suggested Fasteners:
Endless
Clipper Lace
Staple Lace
Single Finger
UCM36 XSP
N/A
