103HARQ
U120105
U85/1E Amber HARQ
international designation:

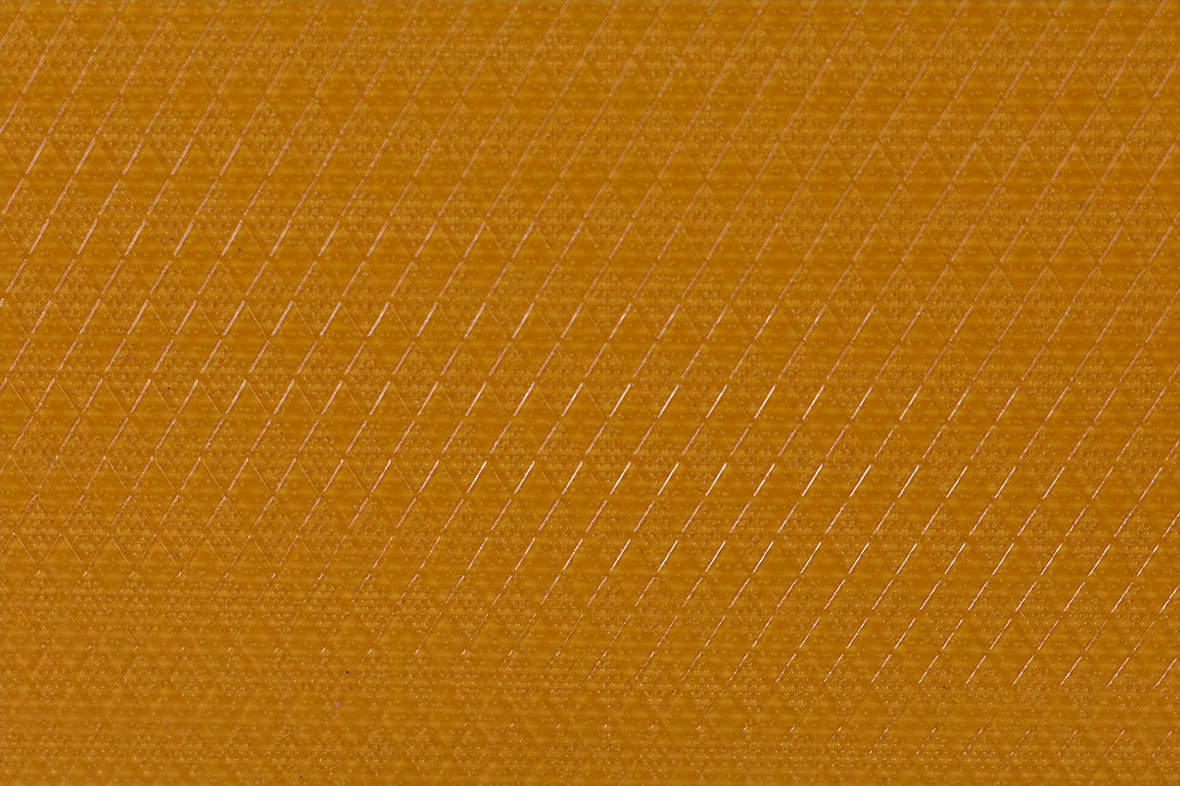

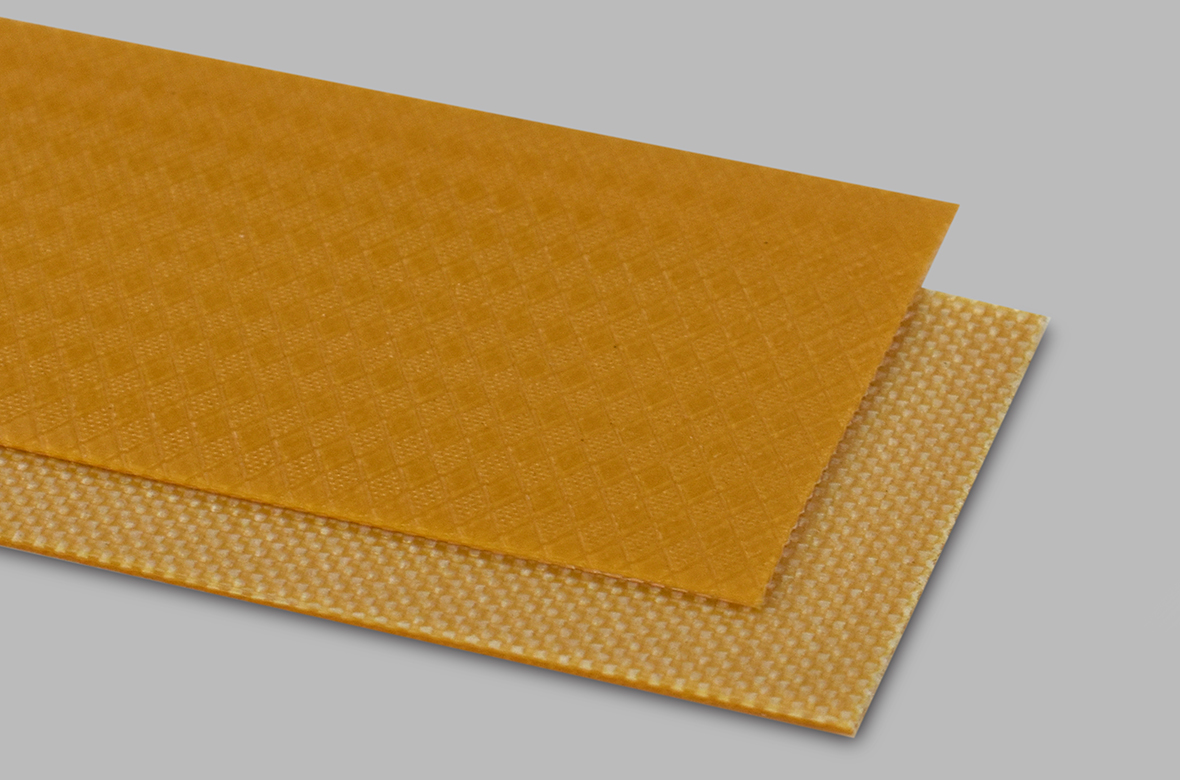

1 ply monofilament with diamond emboss. Great for cooling tunnels, long life baked goods and confectionary applications.
Similar products that may interest you:

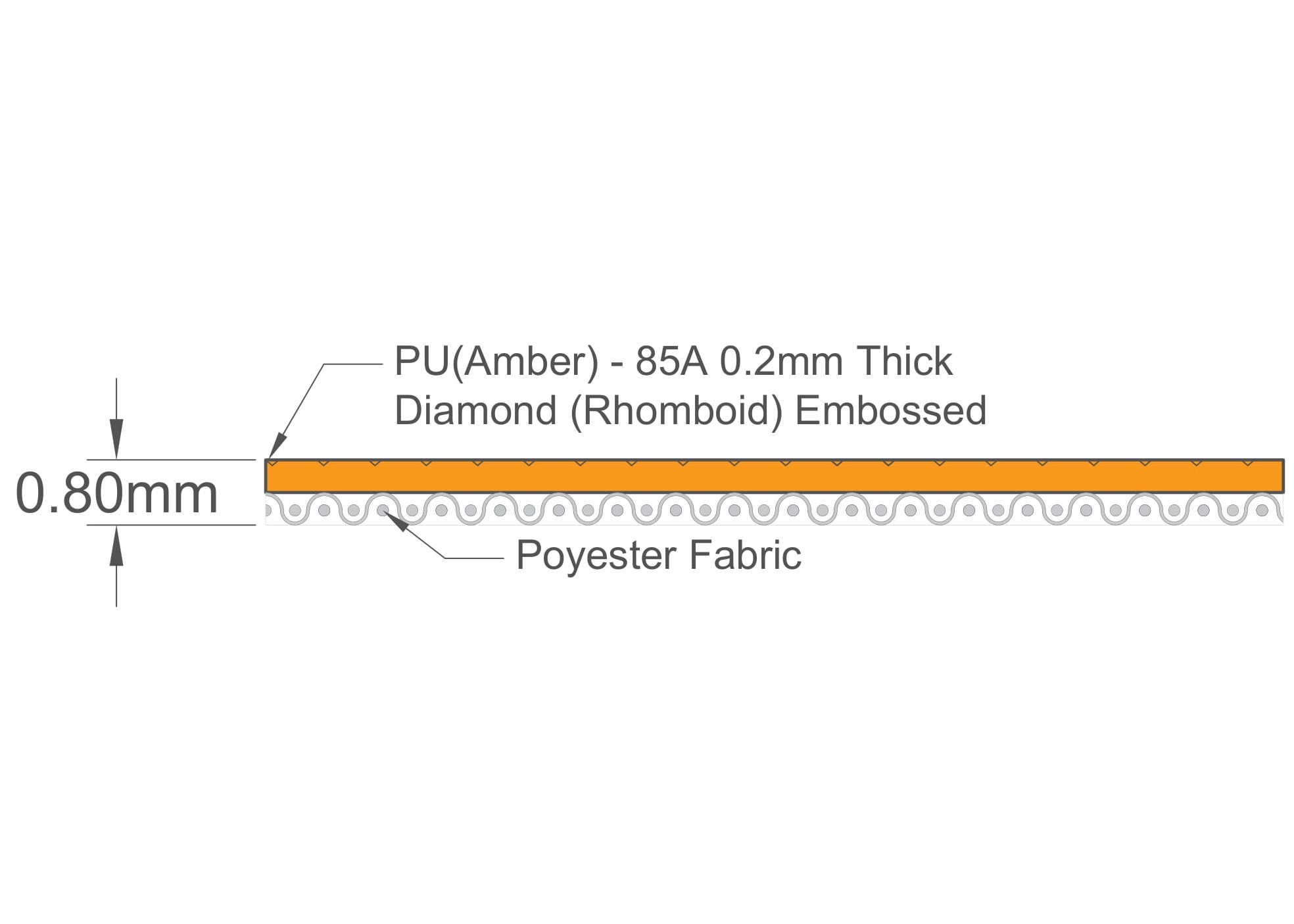

Material Construction
Covering Surface
Conveying Surface Material
Conveying Surface Profile
Conveying Surface Color
Conveying Surface Coefficient of Friction
Tension Member
Tension Member Material
Tension Member Plies

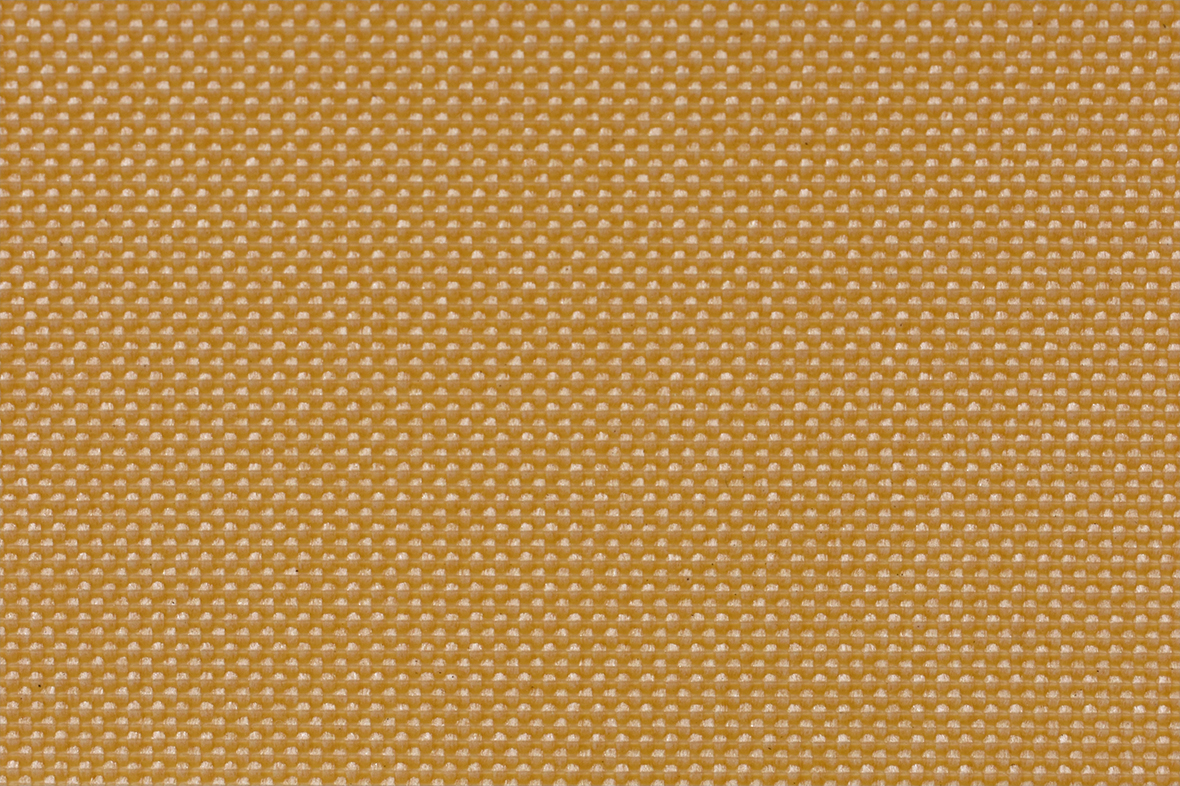

Underside
Underside Material
Underside Profile
Underside Color
Underside Coefficient of Friction
PU
Diamond (Rhomboid) Embossed
Amber
N/A
Polyester Fabric
1
Polyester Fabric
PU Impregnated
White
0.25
Misc:
Material Construction
Overall Thickness
Weight
Maximum Width
Min. Pulley/Nose Bar Diameter for Recommended Endless Splice*
*Min. pulley diameter can vary when mechanical lace is installed
Minimum Back Flex
Load for 1% Extension (Dynamic)
Standard Tension
Product Operational Temperature Range
Cover Durometer
0.80 mm (0.031 in.)
0.80 kg/m² (0.16 lbs./ft²)
1,575 mm (62.00 in.)
8.00 mm (0.315 in.)
16 mm (0.63 in.)
3 N/mm (17.13 lbs./in.)
0.5%
-30/100 °C (-22/212 °F)
85 Shore A
Material Construction
FDA
USDA Meat and Poultry
USDA Dairy
Anti-Microbial
Anti-Static
Flame Retardant
Cross Rigid
Yes
No
No
No
No
No
Yes
Material Construction
Longitudinal Splice
Guide Applied to Cover
Footed Sidewall
Edge Capped
Cleats
Guide Applied to Bottom
Footless Sidewall
Plastic Spiral Lace
No
Yes
No
No
No
Yes
No
Yes
Material Construction
Endless
Clipper Lace
Staple Lace
Single Finger
UCM36 SP w/ Folded Ends
N/A
Pulley Diameter, Minimum
Bucket Projection, Maximum
Belt Strength:
Splicing Instructions
High Speed Press Settings
High Speed Press Pressure (psi)
High Speed Press Temperature (top)
High Speed Press Temperature (bottom)
High Speed Press Time
High Speed Press Foil Position
High Speed Press Foil
High Speed Release Top/Bottom
Water Cooled Press Settings
Water Cooled Press Pressure (psi)
Water Cooled Press Temperature (top)
Water Cooled Press Temperature (bottom)
Water Cooled Press Time
Water Cooled Press Foil Position
Water Cooled Press Foil
Water Cooled Release Top/Bottom
20
165 °C (329 °F)
165 °C (329 °F)
90 s
Top
Clear PU
Impression Pad/Rough Teflon
20
165 °C (329 °F)
165 °C (329 °F)
30 s
Top
Clear PU
Impression Pad/Rough Teflon
Note: Listed above is a guideline only. Every vulcanizer is different and will show different results. We recommend that you do a test splice with your press before attempting the actual belt splice.
Other:
Suggested Fasteners:
